Transformers
To Complement our fleet of loadbanks, kVA has a fleet of transformers for stepping voltage up or down.

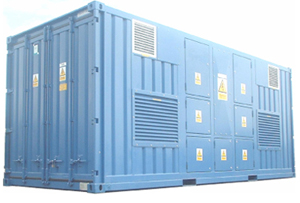

All kVA containerised transformers are:
- Fitted complete with over currentand short circuit protection on the MV breaker.
- Fitted with MV & LV switchgear.
- Fully bounded to ensuring no possiable spillage.
- Supplied with flexible MV cable in a wide range og lengths.
- Suitable for operation in 'step up' mode for power generation.
Other Transformers available on request
Model
kVA |
Enclosure |
Voltages |
Length mm |
Width mm |
Height mm |
Weight KG |
Cooling |
| 500 |
Skid With Frame |
415-690v |
1920 |
1300 |
1530 |
1050 |
Air Cooled |
| 2500 |
ISO-type 10' Container |
3.3 up to 15kV |
2991 |
2438 |
2591 |
9500 |
Oil |
| 5000 |
ISO-type 20' Container |
3.3 up to 15kV |
6058 |
2438 |
2591 |
18500 |
OIl |
|
